Data quality

The Data Quality suite provides continuous monitoring and automated testing across your data models and sources. Define rule-based assertions, schedule continuous runs, enforce publication gates, and review AI-driven anomaly suggestions to ensure dashboards and reports are built on trustworthy data.

Data quality test rules

Click Create Test to define assertion rules against model tables or specific columns. DataSquares supports 14 built-in rule types:

Test Rule	Scope	What it asserts
Not null	Column	Verifies a column contains no (or bounded) missing/NULL values.
Unique	Column	Asserts distinct values across all rows — ideal for primary key validation.
Duplicate detection	Table / Multi-column	Checks for duplicate rows across a specified set of columns.
Foreign key	Column	Validates referential integrity against a target reference table and column.
Value range	Column	Asserts numeric values stay within configured min and max boundaries.
No negative	Column	Verifies numeric values are greater than or equal to zero.
Row count	Table	Asserts that the table size falls within expected minRows and maxRows thresholds.
Date range	Column	Asserts date values fall within a specific chronological window (minDate to maxDate).
No future date	Column	Validates that dates are on or before the current day — detecting faulty ETL or data entry errors.
Email format	Column	Asserts strings conform to valid RFC email address syntax.
Phone format	Column	Asserts phone numbers match standard international/local formatting.
Regex pattern	Column	Validates strings against custom regex patterns you supply.
Allowed values	Column	Asserts column entries belong to an explicit whitelist of allowed values.
Custom SQL	Model / Source	Executes arbitrary validation queries (e.g. multi-table consistency checks, custom business rules).

Severity levels

Assign severity when configuring each test:

• Critical — Enforces publication gating on downstream models and dashboards.
• High / Medium / Low / Info — Surfaces warnings and alerts without blocking publishes.

Scheduling & execution

• On-demand execution: Run individual tests or click Run All in the Rules tab. Results report PASS, WARN, FAIL, or ERROR along with runtime telemetry and failure messages.
• Scheduled runs: Enable CRON-based schedules (e.g. 0 0 * * * for nightly execution).
• Run on sync: Trigger test execution automatically whenever data source synchronization occurs.

Publication quality gates (Critical checks)

When publishing a dashboard, report, or data model, DataSquares evaluates active critical data quality tests:

• Automatic hold: If any critical test bound to the underlying models or sources is currently failing or in an error state, publication is held.
• Continuous availability: The previously published version continues serving end users without interruption.
• Fail-safe rules:
  • Only tests marked with Critical severity gate publication.
  • Tests that encounter execution errors are treated as failures to prevent publishing unverified data.
  • Newly added tests that have not yet run do not retroactively freeze publication.

Audit-logged overrides

Authorized administrators can override a held publication:

• Overriding requires a mandatory reason explaining why the release is proceeding despite failing checks.
• Overrides are permanently recorded in the Audit log, documenting the author, reason, and list of failing tests.

Monitoring views & tabs

The Data Quality workspace (/data-quality) provides dedicated monitoring tabs:

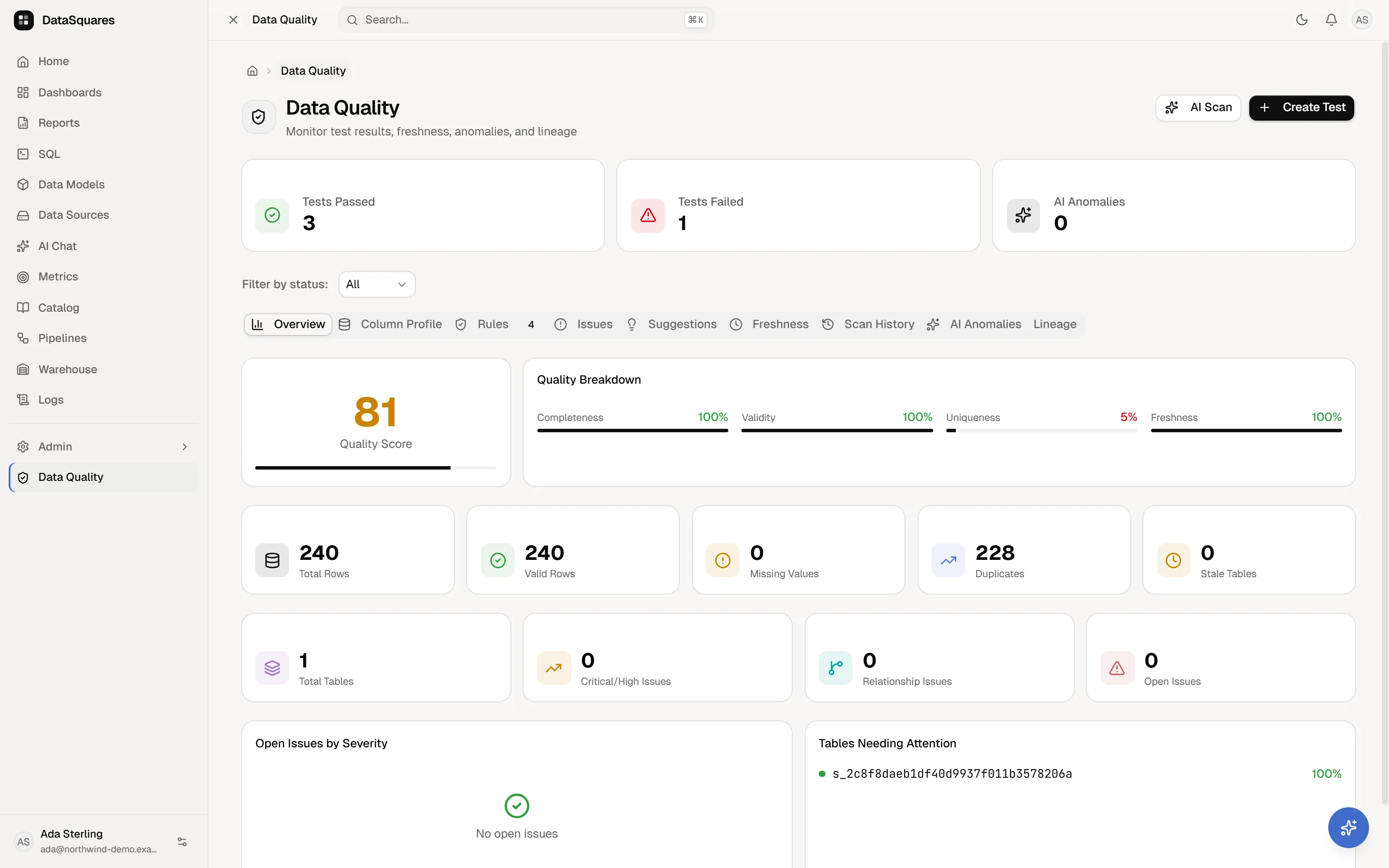

• Overview: High-level health score, passed/failed KPI cards, and quality dimension breakdowns (Completeness, Validity, Uniqueness, Freshness).
• Column Profile: Comprehensive column-level statistical profiling (distributions, null ratios, distinct counts).
• Rules: Full registry of configured quality tests (/api/data-quality/tests) with inline run, edit, delete, and bulk execution controls.
• Issues: Consolidated view of all active test failures, anomalies, and schema discrepancies (/api/data-quality/issues) with resolution note tracking.
• Suggestions: AI-generated quality recommendations, index improvements, and relationship suggestions with one-click Apply or Dismiss.
• Freshness: SLA-based table freshness monitoring (/api/data-quality/freshness) to identify stale or delayed datasets.
• Scan History: Historical log of test runs, execution durations, and score trends.
• AI Anomalies: Outliers and distribution shifts detected by autonomous machine learning scans.
• Relationship Health: Structural relationship integrity checks across model dependencies.

AI anomaly scan

Click AI Scan in the top header to initiate an automated diagnostic scan (POST /api/data-quality/scan):

• Analyzes column distributions, schema shifts, and referential relationships across workspace models.
• Surfaces unexpected data drift, outliers, and proposed new relationships directly in the Suggestions and AI Anomalies tabs for one-click review, acceptance, or dismissal.
