Governed metrics

A governed metric binds a SquareX expression to a data model with a grain, an optional target, and stewardship metadata — the single source of truth for a KPI. Where a measure lives inside one model, a metric is a workspace-level object: certifiable, evaluable through the API, usable by the AI agent, and bindable to KPI cards.

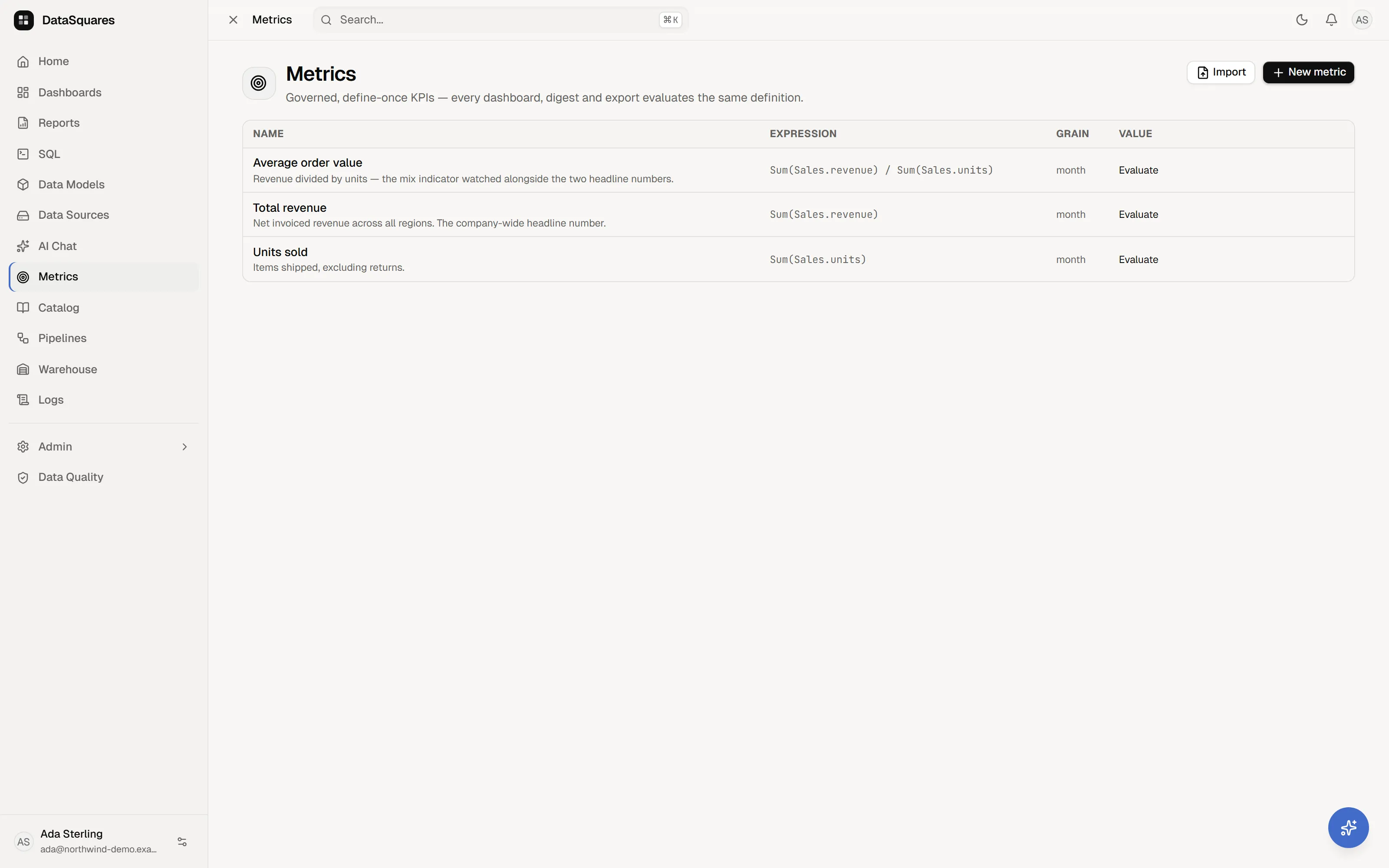

The Metrics hub: each governed metric with its SquareX expression, grain, and an Evaluate action.

The Metrics hub

The Metrics page lists every governed metric — name (with its description and any ✓ certified and domain badges), expression, grain, and value. Values are evaluated on demand: click Evaluate on a row; after it loads, use the refresh control to evaluate it again. The current value (and target, if set) is computed live through the governed query pipeline, with your row-level security applied.

Filter by domain, and use Import/Export to move metric definitions between workspaces. Hover a row for Certify/Uncertify, Export, Edit, and Delete. Certification is rejected by the API for non-admins even though the row action is visible.

The list distinguishes failure from an empty workspace. If metrics cannot be loaded, it offers Try again and suppresses the first-metric prompt so a transient error does not encourage a duplicate KPI. The domain control follows the same rule and hides when its own request fails.

Defining a metric

New metric opens the definition dialog:

Field	Meaning
Name / Description	how the metric appears everywhere
Data model	the model the expression validates against — pick this first
Expression (SquareX)	the definition, with live validation (“✓ valid · number”)
Grain	the natural evaluation bucket: day, week, month, quarter, or year
Target (optional)	the goal — enables pace-to-target insights
Owner	the accountable person
Domain	a grouping label (e.g. “Finance”)

The editor loads model tables, fields and existing measures for SquareX completion. It validates after a short pause and validates again when you save, so an old success result cannot approve expression text that has since changed. Model and owner selectors disable on load failure instead of presenting an empty list; an existing owner or model is preserved when it is no longer in the returned picker data.

Metric reads require dashboard:read; create, edit, delete, import, digest writes and ownership updates require dashboard:write. The Metrics menu itself is controlled by the metrics menu permission. Ownership can only be assigned to a current workspace member; certification is reserved for admins.

Metric names are unique within a workspace. A duplicate create or rename returns 409 Conflict. Delete is a soft delete in the API; it removes the metric from live lists but does not rewrite dashboard definitions that may still reference its ID.

Metrics on dashboards

A KPI card can bind directly to a metric: in the card’s config panel, Bind to metric replaces the field wells — the card renders the metric’s evaluated value, so every dashboard showing “Monthly Revenue” shows the same Monthly Revenue.

Metrics in the AI agent

The AI chat agent knows your governed metrics: ask “how is revenue pacing?” and it answers from the certified definition — via its list_metrics and evaluate_metric tools — rather than improvising SQL. The same two tools are exposed to external clients through the MCP server.

Digests & pace insights

Metric digests bundle up to 20 metrics on a daily or weekly schedule and deliver through webhooks — Slack-format hooks get readable channel lines. Metrics with targets carry a pace narrative: “Monthly Revenue is pacing 18% ahead of target — projected $1.4M against the $1.2M goal by month end”, with statuses from achieved through critical. Digests are managed through the Metrics API today (no web UI yet). The API can list, create, delete, and send a digest immediately; there is currently no digest update endpoint. A digest contains at most 20 metrics, defaults to daily and enabled, and schedules its first run one day or one week after creation.

Scheduled runs evaluate with the digest creator’s identity. Send now uses the caller’s identity because the values are returned in that HTTP response. That distinction prevents a restricted caller from receiving the creator’s less-restricted result. One metric failing produces an error entry rather than dropping the whole digest. A completed run emits digest.sent and creates an in-product notification for the creator.

Metric-bound alerts

The alerts API accepts a metric-bound condition — { metricId, operator, threshold } — that watches a governed metric directly (the dashboard alert dialog currently creates field-based rules; metric-bound rules are created via the Alerts API).

Automatic anomaly sweeps

DataSquares evaluates certified metrics for anomalies in the background, at most once per hour per metric. To qualify, a metric must be model-bound, certified, have a time dimension, and use a day, week, month, or quarter grain. Year-grain metrics and metrics without a time dimension are skipped.

The sweep removes the still-in-progress trailing bucket before evaluating the latest complete period. It needs enough history (at least eight complete daily or weekly points, or seven monthly/quarterly points) and deduplicates by metric and bucket. A firing records alert history, notifies the metric creator, and emits metric.anomaly_detected. Evaluation uses the creator’s identity, so RLS is preserved; uncertified metrics are not swept.

API-only metric capabilities

The metric API exposes more fields than the current web editor: stored filters, a time dimension, warning/critical thresholds, number formatting, and optional series evaluation. POST /api/metrics/{id}/value accepts ad-hoc filters, refresh: true, and an optional series window of 30d, 90d, or ytd with an optional grain. Series require a time dimension and return at most 500 buckets through the same RLS-aware governed query pipeline.

The create API also accepts savedQueryId, but saved-query-bound metric evaluation is not implemented: the value, digest, alert, anomaly and KPI paths currently evaluate model-bound metrics only. The web editor therefore offers data models only. Treat saved-query binding as a storage contract, not a working evaluation path.
